XDR-E Series: 75W~960W 1Ø Input Ultra Slim & Cost-Effective DIN Rail Power Supply

مدیر 1404/08/05

Date：2025/04/18

Mean Well

Mean Well

Product Strategy Center /Frank Chen
frank@meanwell.com

Mean Well

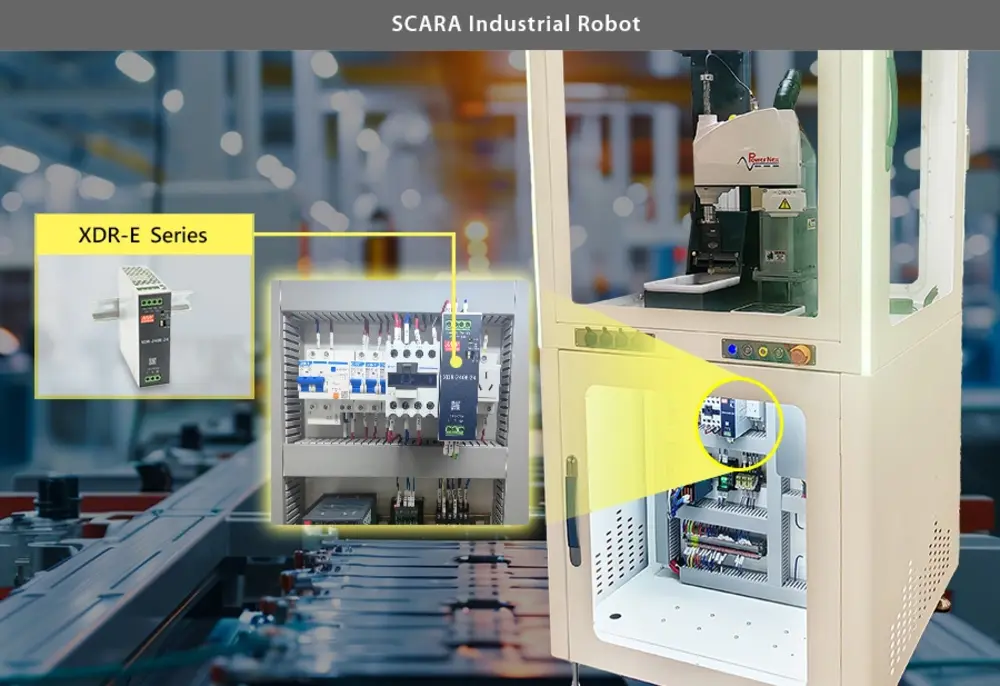

The MEAN WELL SDR/NDR/EDR series (75W~960W) has been on the market for over a decade, earning widespread recognition with cumulative sales reaching nearly 100 million units. These power supplies are widely used in industrial automation, power facilities, renewable energy equipment, network switches, and semiconductor processing equipment, among others. To offer an even greater value option, we are excited to introduce the all-new XDR-E Series (75W/120W/150W/240W/480W/960W).

The XDR-E series stands out for its exceptional balance of performance and value! Compared to the previous SDR/NDR/EDR series, the XDR-E features a significantly reduced size—23% to 45% smaller (depending on the model). It also offers a more complete product lineup, addressing the market gap for 240W/480W 12V models while expanding the entire series to include 36V options. With improved efficiency of up to 96%, a wider operating temperature range of -40 to +70℃, and compliance with more international regulations across various industries, the XDR-E series delivers superior performance at a more competitive price – helping to reduce overall system costs.

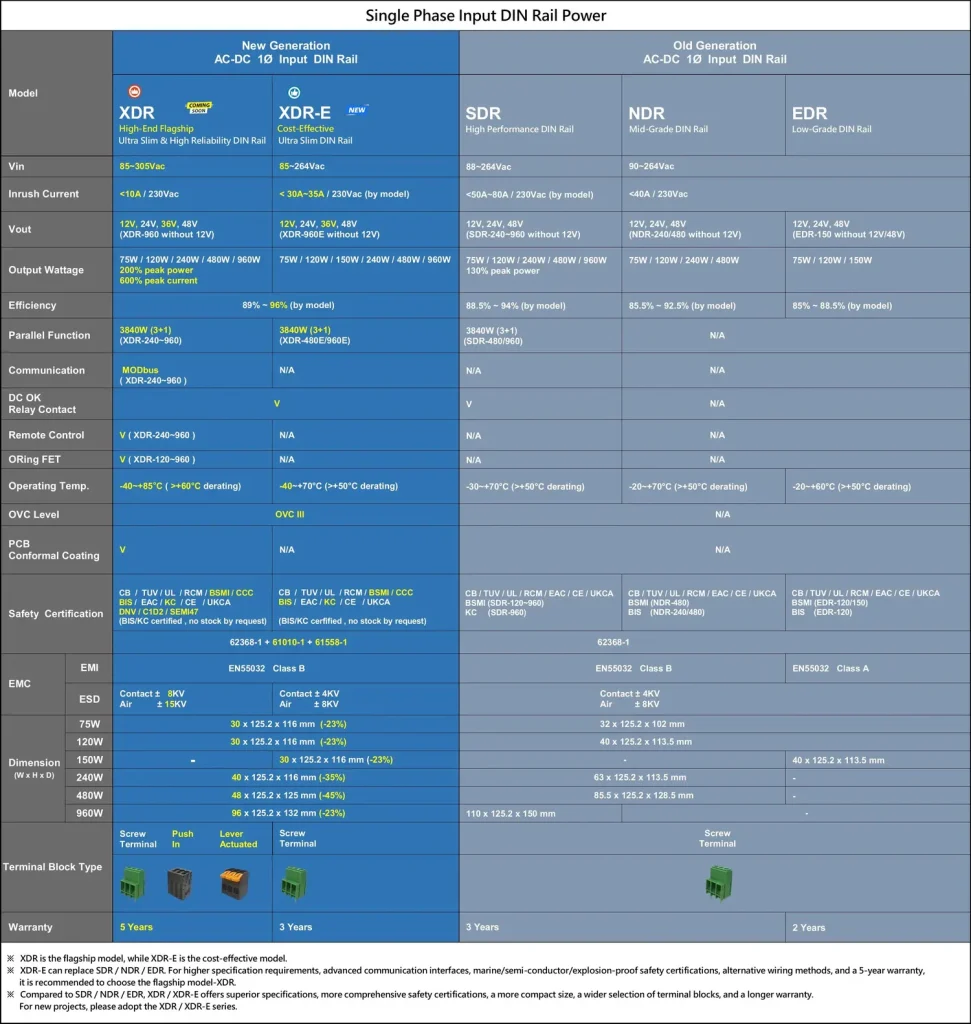

Please refer to the table below for detailed specification between the new and old generations:
