منبع تغذیه MPT-65C 🩺

MEAN WELL MPT-65C:

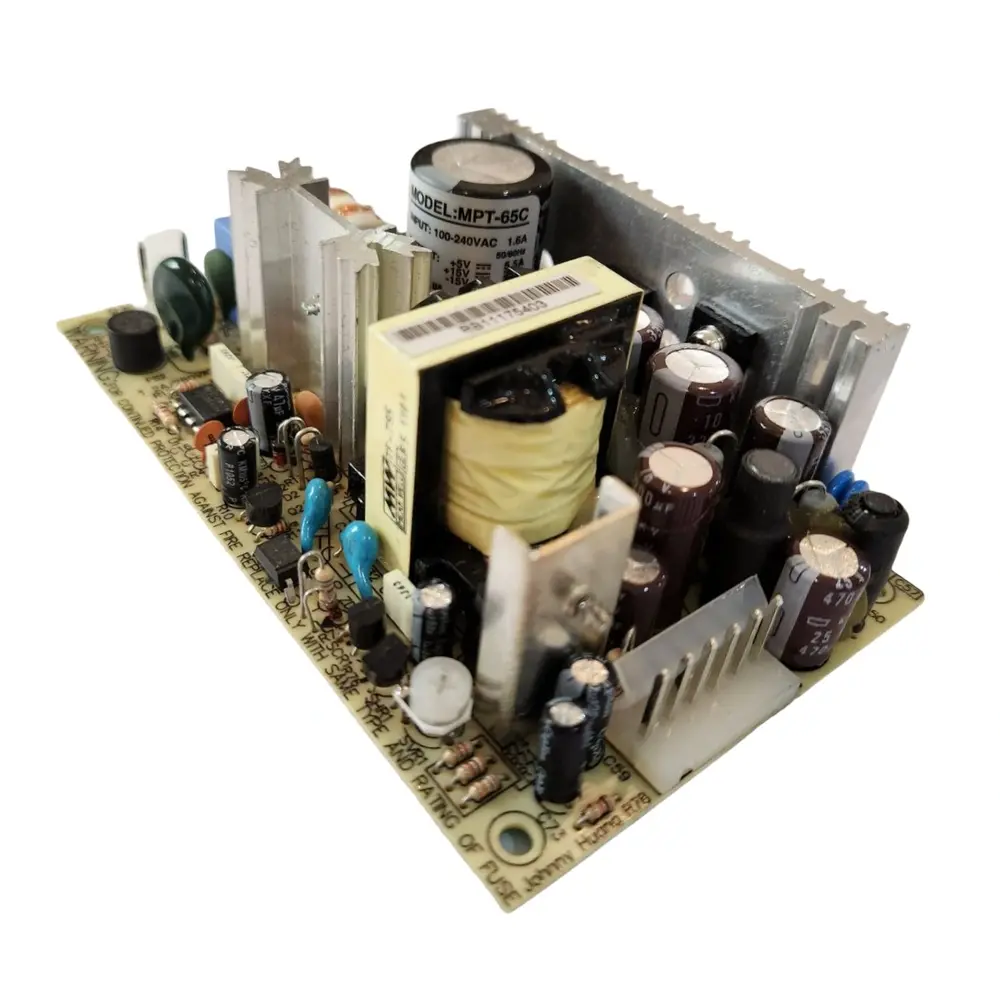

MPT-65C is a 65W (72W with external FAN) highly reliable PCB type medical power supply with a 5” by 3″ footprint. It accepts 90~264VAC input. The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.

MPT-65C is able to be used for both Class I (with FG) and Class II (no FG) system design. Further to the low leakage current, it conforms to the international medical regulations (2*MOPP) and EMC EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

MPT-65C Features:

• Universal AC input / Full range
• Low leakage current <250 HA
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• 100% full load burn-in test
• Fixed switching frequency at 45KHz
• Suitable for BF application with appropriate system consideration
• Adjustable output voltage in the range of -10 ~ + 10% for CH1
• Number of Outputs: 3
• Power Rating: 65 W
• CH1 Output: 5 VDC
• CH1 Output Current: 5.5A
• Additional Output Voltages: 15, -15 VDC
• Efficiency: 74%
• Output (CH 1): 5 VDC / 0.4~7.0 A
• Output (CH 2): 15 VDC / 0.2~2.6 A
• Output (CH 3): -15 VDC / 0~0.7 A
• 3 years warranty

Specs:

MPT-65-SPEC
