منبع تغذیه فول استاندارد NSP-320-24 🩺

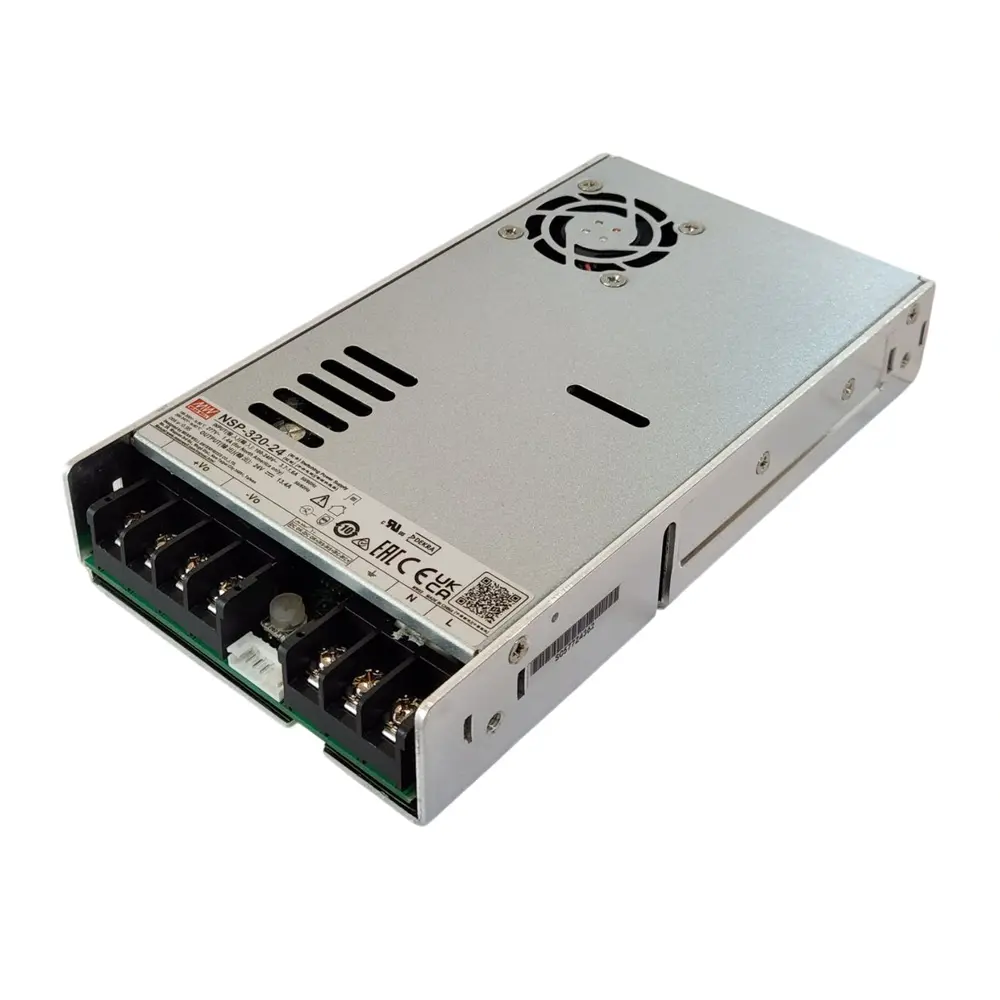

MEAN WELL NSP-320-24:

The NSP-320 series is a 320W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.

key features include: compact size (179*99*30 mm) for better space utilization in system installations, ultra-wide input range of 85~305Vac for global compatibility, up to 93.5% efficiency and low standby power consumption (<0.3W ~ 0.5W by models) for energy-saving and carbon reduction, constant current design with 200% peak power capability, wide operating temperature range from -40 to +85C (+60C at full load), compliance with OVC III, built-in Remote Control /Remote Sense/DC OK signal, internal PCB coating, complete protections, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1,
as well as 2 X MOPP compliance and extremely low leakage current (<350uA). It is suitable for BF-rated medical equipment and comes with a 5-years warranty, making it a highly cost-effective solution for industrial power supply needs.

NSP-320 Features:

• Wide AC input / Full range (85 ~ 305Vac) with PFC (277Vac available)
• No load power consumption <0.3W ~ 0.5W by R.C.
• Global certificates in multi-fields
  (ITE 62368-1, Medical 60601-1,Household 60335-1,
  Industrial 61558-1/2-16/61010-1, Energy converter 62477-1)
• 200% peak power capability (12 ~ 60V models)
• High efficiency up to 93.5%
• -40~85℃ wide range operation temperature(> +60℃ derating)
• Extremely low leakage current<350uA, 2 x MOPP, suitable for BF medical applications
• Built-in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling by built-in DC fan with noise <40dB and fan ON/OFF control
• Built-in remote ON/OFF control/Remote Sense/ DC OK signal
• Over voltage category III (OVC III)
• Operating altitude up to 5000 meters
• Conformal coating
• 5 years warranty

NSP-320-24 Features:

• Output Power (W): 321.6
• Output Voltage: 24 VDC
• Output Current: 13.4A @24V
• Ripple & Noise (mV p-p): 240
• Line Regulation (±): 0.5%
• Load Regulation (±): 0.5%
• Efficiency: 93.5%

Other available models on order:

• 5V: NSP-320-5
• 7.5V: NSP-320-7.5
• 12V: NSP-320-12
• 15V: NSP-320-15
• 24V: NSP-320-24
• 27V: NSP-320-27
• 36V: RSP-320-36
• 48V: NSP-320-48
• 60V: NSP-320-60

Applications:

• Industrial automation machinery / control system
• Security system
• Mechanical and electrical equipment
• Electronic instruments, equipment or apparatus
• Network equipment
• Telecom devices
• Power sourcing equipment of PoE
• Home automation
• Medical devices
• Charging application

Specs:

NSP-320 Series
