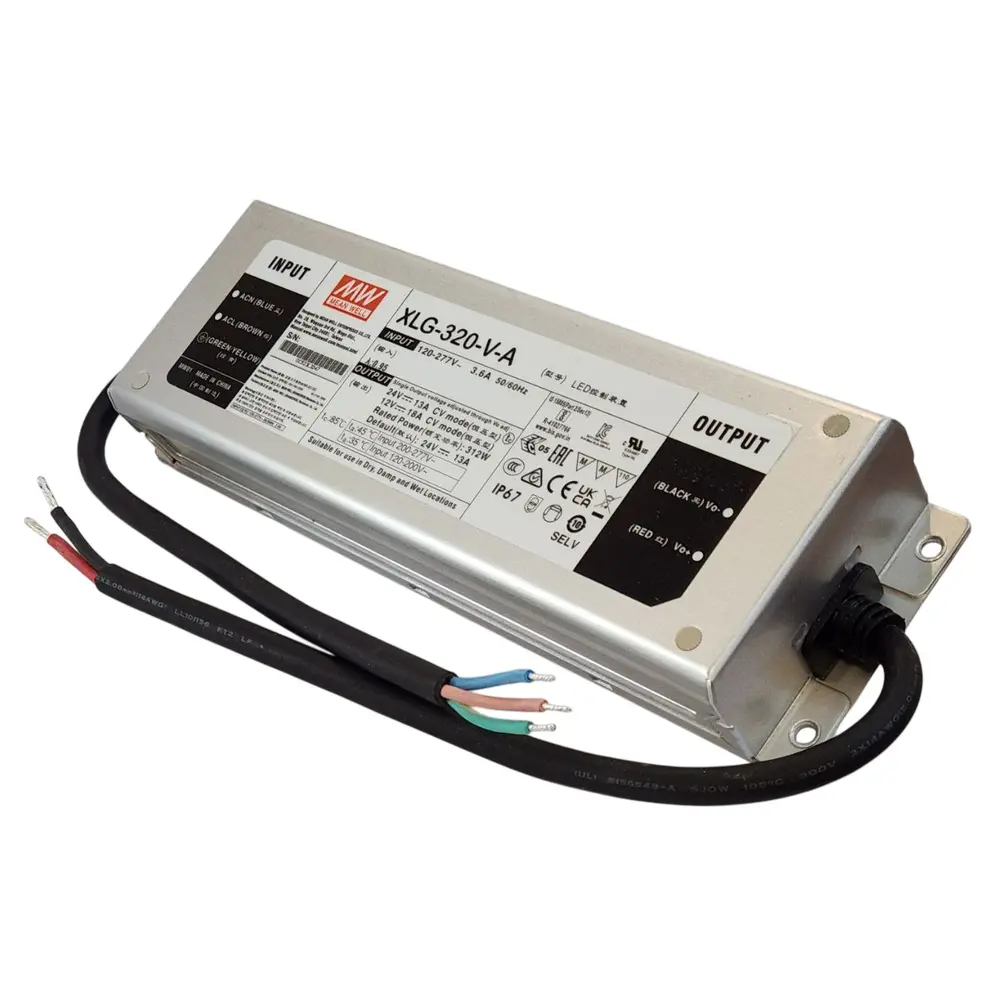

LED درایور XLG-320-V-A

XLG-320 Series:

XLG-320-V-A series is a Constant Voltage Mode LED Driver that provides 12 VDC and 24 VDC Outputs. User can select between the two output voltages. XLG-320-V-A  csn source 13A @24VDC (312 W) or 18A @12VDC (216 W) Outputs.

XLG-320-V-A operates 100~305VAC. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C ~ +85°C temperature under free air convection.

The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240 is designed with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety during installation.

XLG-320-V-A Features:

• Wide input range 100~305V AC( Class I)
• Metal case with IP67, suitable for outdoor application
• Power Factor Correction (PFC)
• Surge protection with 6KV/4KV (10KV/6KV optional)
• Protection functions: Over voltage, short circuit, over current, over temperature
• Life time >50,000 hrs.
• 5 years warranty

XLG-320-V-A Specifications:

• DC Voltage: 12 or 24 VDC selectable
• Rated current: 18 A for 12 VDC and 13 A for 24 VDC
• Rated power: 216 W for 12 VDC and 312 W for 24 VDC
• Dimensions: 246 L x 77 W x 39.5 H (mm)

Applications:

• Skyscraper and commercial building lighting
• Street lighting
• Floodlights
• Stage lighting
• Fishing and marine lighting
• Horticulture lighting
• Bay lighting
• Type HL for use in Class I, Division 2

Specs:

XLG-320-SPEC
