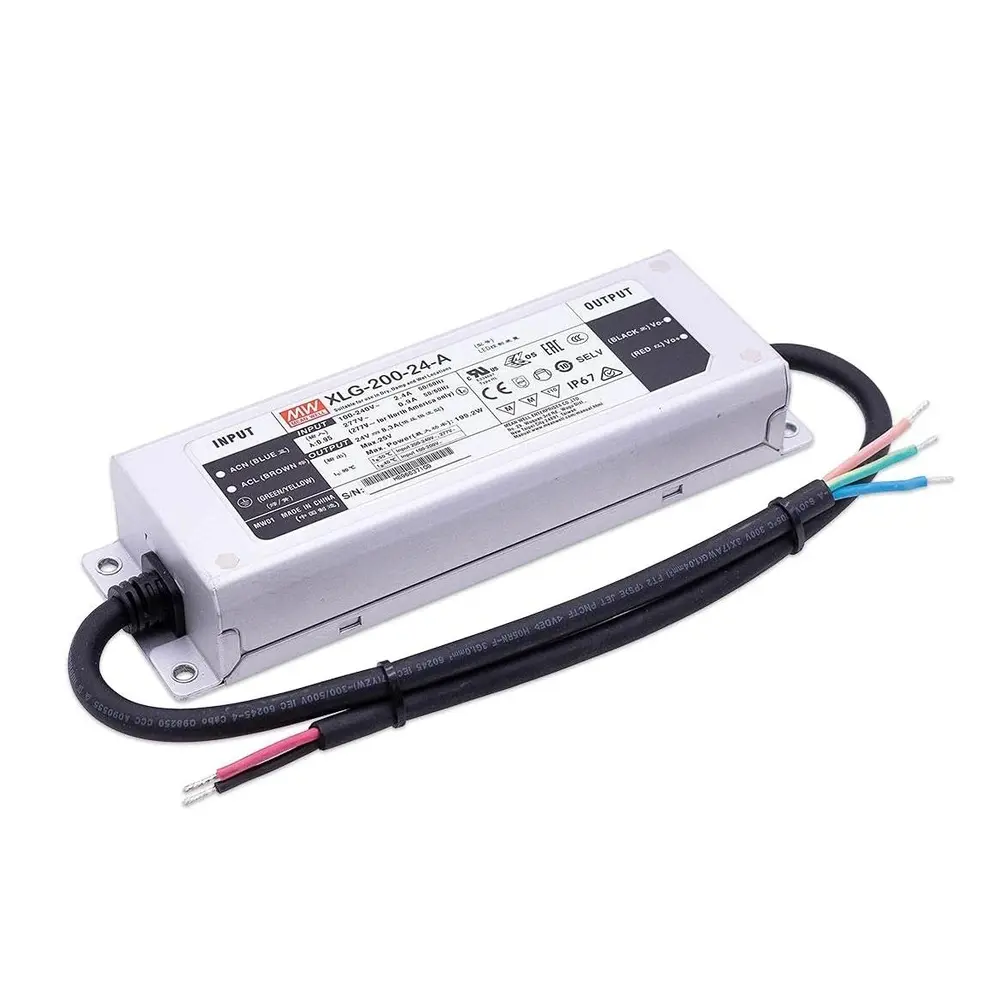

LED درایور XLG-200-24-A

XLG-200 Series:

XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C temperature under free air convection.

The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-200 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

XLG-200-24-A Features:

• Wide input range 100~305V AC( Class I)
• Constant Voltage + Constant Current operation
• Constant Current region: 16.8 ~ 24V DC
• Current adjustment range: 4.15 ~ 8.3 A
• Metal case with IP67, suitable for outdoor application
• Power Factor Correction (PFC)
• Surge protection with 6KV/4KV (10KV/6KV optional)
• Protection functions: Over voltage, short circuit, over current, over temperature
• Life time >50,000 hrs.
• 5 years warranty

XLG-200-24-A Specifications:

• Nominal DC Voltage: 24 V
• Rated current: 8.3 A
• Rated power: 199.2 W
• Dimensions: 199 L x 63 W x 36 H (mm)

Applications:

• Skyscraper and commercial building lighting
• Street lighting
• Floodlights
• Stage lighting
• Fishing and marine lighting
• Horticulture lighting
• Bay lighting
• Type HL for use in Class I, Division 2

Available models:

• XLG-200-12-A
• XLG-200-24-A
• XLG-200-H-A
• XLG-200-H-AB
• XLG-200-L-A
• XLG-200-L-AB

Specs:

 XLG-200-SPEC
