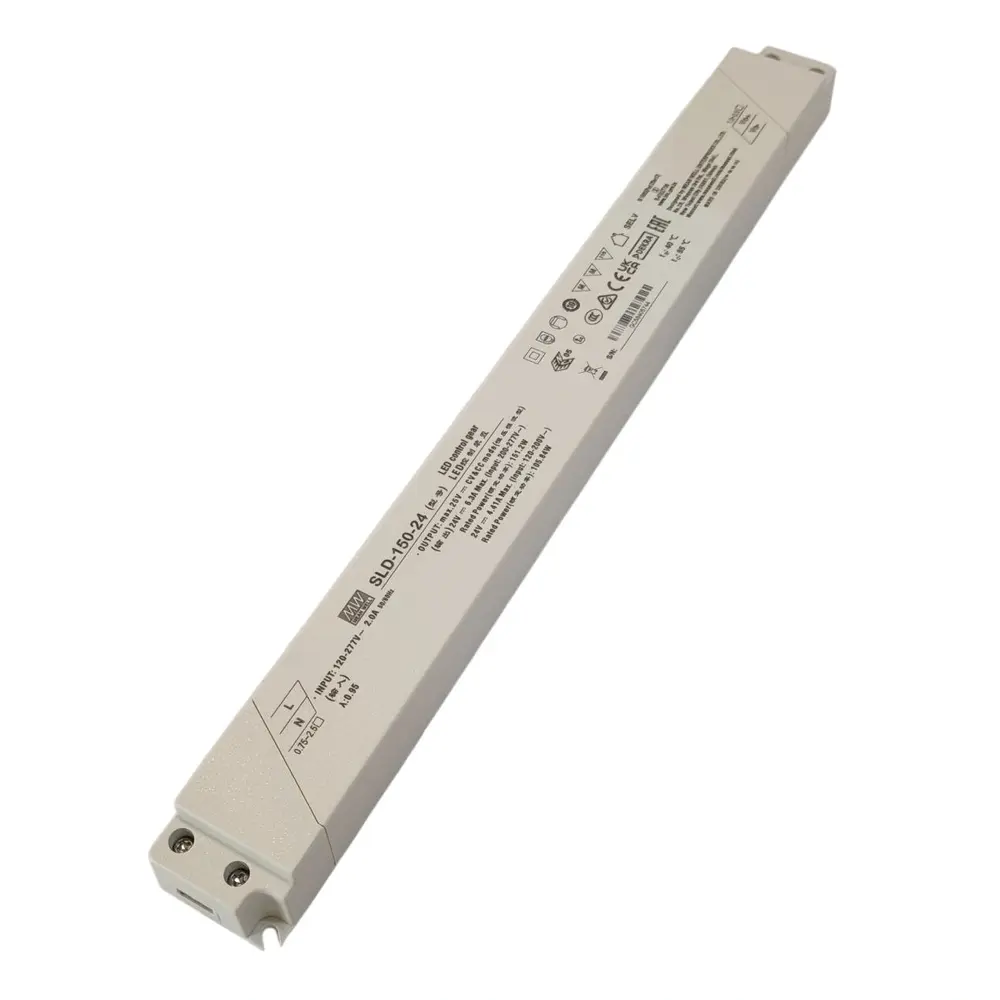

LED درایور SLD-150-24

SLD-150 Series:

SLD-150 series is a 150W AC/DC LED driver featuring with dual modes for constant voltage and constant current applications. SLD-150 operates from 120~305VAC and offers models with different rated voltage ranging between 12V and 56V. The 12V and 24V are suitable for constant voltage LED strip or household device and 56V is support for constant current application.
Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -25℃ ~ +85℃ case temperature under free air convection. SLD-150 design with low profile and slim housing which is good for signage and decoration lighting applications.

The Mean Well SLD-150 is a 150W ultra-slim, linear LED driver for indoor use, featuring a wide 120-305VAC input, high efficiency (up to 93%), low <0.5W no-load power, and 5-year warranty, available in 12V/24V (Constant Voltage/Current) or 56V (Constant Power) models, designed for LED strips/boards with built-in PFC and Class II/SELV safety. Key specs include slim profile (330x35x22 mm), high case temp
(-25 to +85℃), and protections like short circuit, overvoltage, and overload.

SLD-150-24 Features:

• Wide input range 120-305VAC with PFC function
• Constant Voltage + Constant Current mode output
• Compliance with BS EN/EN61347/EN60335-1 regulations
• Class II power unit
• Slim and Compact housing Design
• No load power consumption <0.5W
• Constant Current region: 8.4 ~ 12V DC
• Rated Current: 6.3 A
• 5 years warranty

Applications:

• Strip lighting
• Decoration lighting
• Cabinet lighting
• Signage and display
• Cove lighting
• Household device lighting

Available models:

• SLD-150-12
• SLD-150-24
• SLD-150-56 (Constant Power)

Specs:

SLD-150-SPEC
