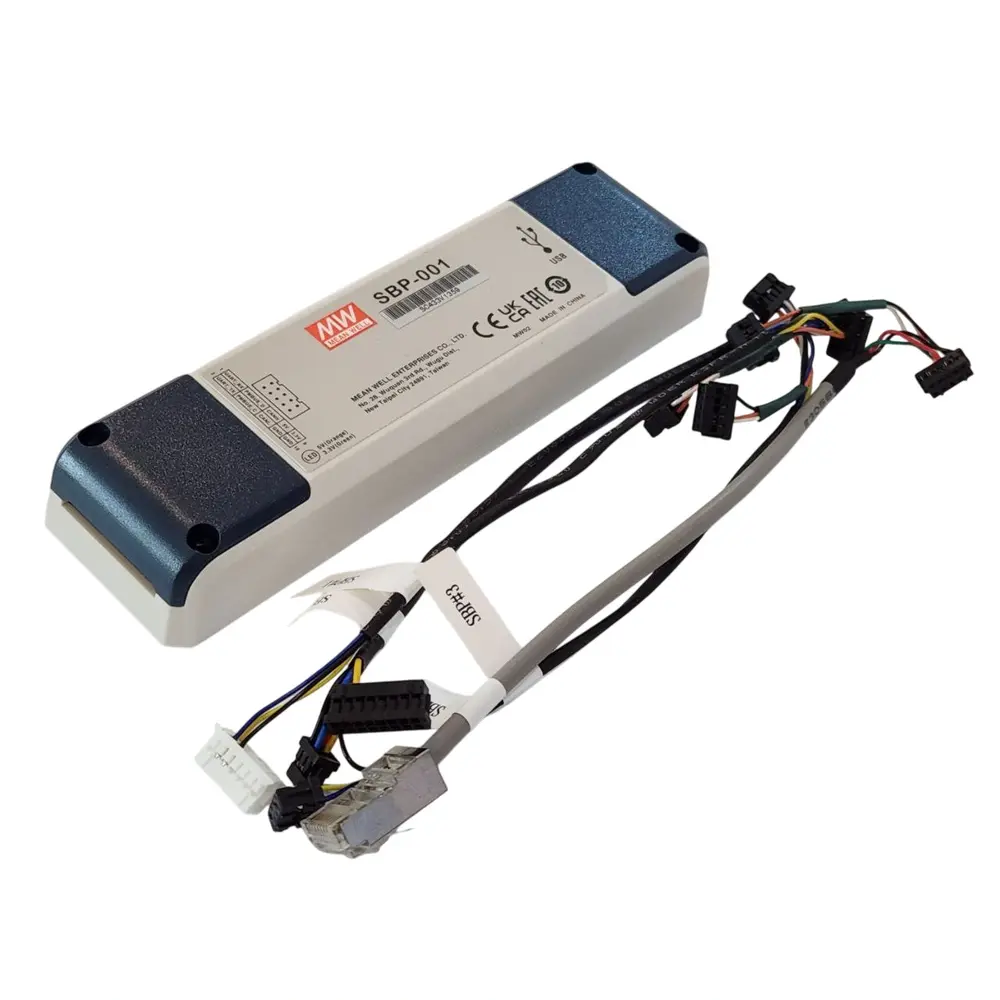

MEAN WELL SBP-001 Intelligent Programmer:

SBP-001 is a programmer, particularly for MEAN WELL’s various programmable battery charger models to program the parameters of charging curves, such as constant current (CC), constant voltage (CV), float voltage (FV) and tapper current (TC), tapper current(TC) and so on, to accommodate the diversified battery for simplicity and convenience, users can easily configure MEAN WELL’s intelligent battery chargers specification in industry. With the design accounting with SBP-001 programmer and the computer; all of the setups are able to be finished easily by the means of the specific software.

SBP-001 Intelligent Programmer Features:

• For MEAN WELL’s intelligent battery chargers, Charging curve programmable suitable for models:
  ENC-120/240/360
  NPB-450/750/1200/1700
  DRS-240/480
  HEP-1000,HEP-2300-55
  RPB/RCB-1600
  DBU/DBR-3200
• Simple connection and configuration
• No need of battery or AC power
• LED status indicator
• Communication cables of SBP#1,SBP#2,SBP#3,SBP#4 included (USB cable Type A – Mini USB is not included)
• Dimensions: 165 L x 46 W x 23 H (mm)
• 1 year warranty
• Manufacturer: MEAN WELL

Specs:

SPD-20-SPEC
