منبع تغذیه RT-125B

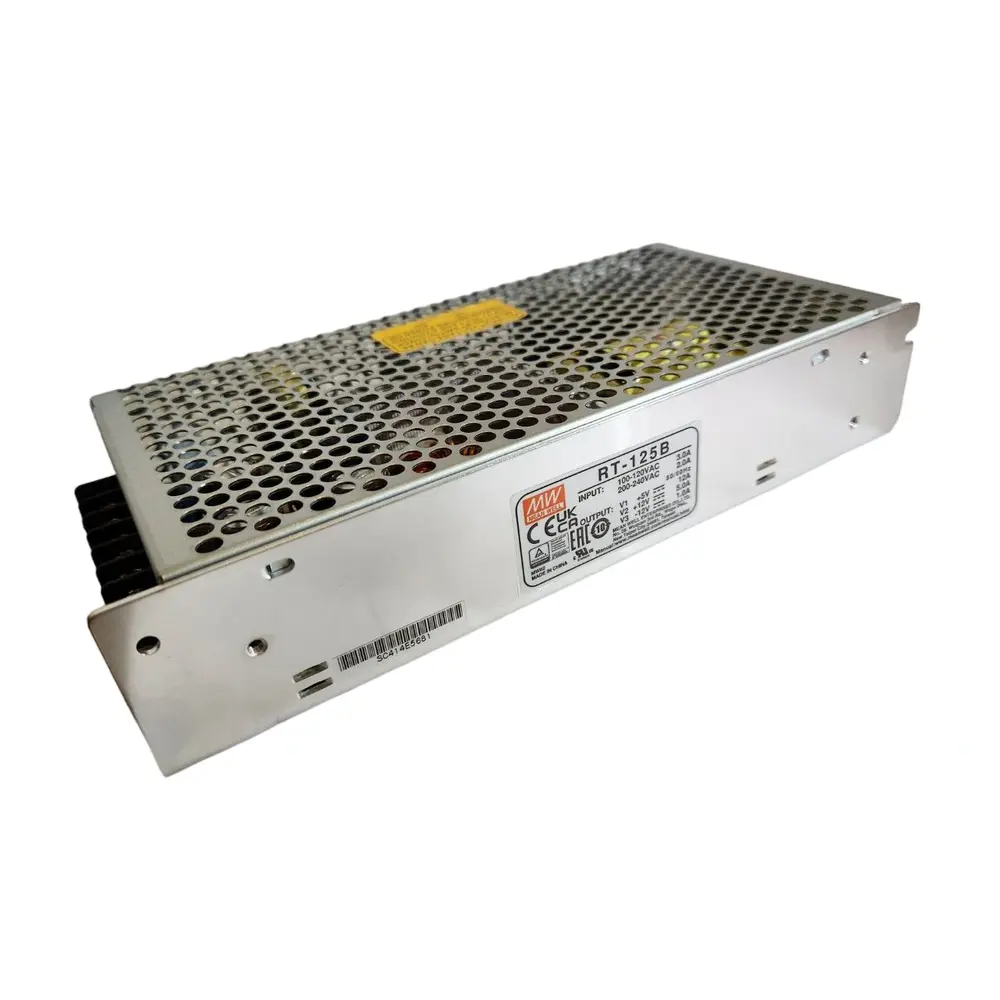

MEAN WELL RT-125B:

MEAN WELL RT-125B has 3 outputs with different voltages, so it can be used in non-standard telecommunications and industrial applications.

RT-125B Features:

• AC Input voltage: 88~132VAC / 176~264VAC selected by switch
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105 °C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• Meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
• Output adjustment range: -5% ~ + 10% CH1
• Minimum Isolation Voltage: 3000V
• Approvals: UL, CUL, TUV, CB, CE, EN, EAC
• 3 years warranty

RT-125B more Features:

• Dimensions: 199 x 98 x 38 mm
• Number of Outputs: 3
• Power Rating: 132 W
• CH1 Output: 5 VDC
• CH1 Output Current: 12 A
• Additional Output Voltages: 12, -12 VDC
• Efficiency: 78%
• Input Frequency: 47 Hz to 63 Hz
• Maximum Input Current: 2 A
• Output Connector Type: Screw Terminal Block
• Output (CH 1): 5 VDC / 12A
• Output (CH 2): 12 VDC / 5A
• Output (CH 3): -12 VDC / -1A
• Possibility of installation on a DIN rail (using adapters)

Specs:

RT-125B-SPEC
